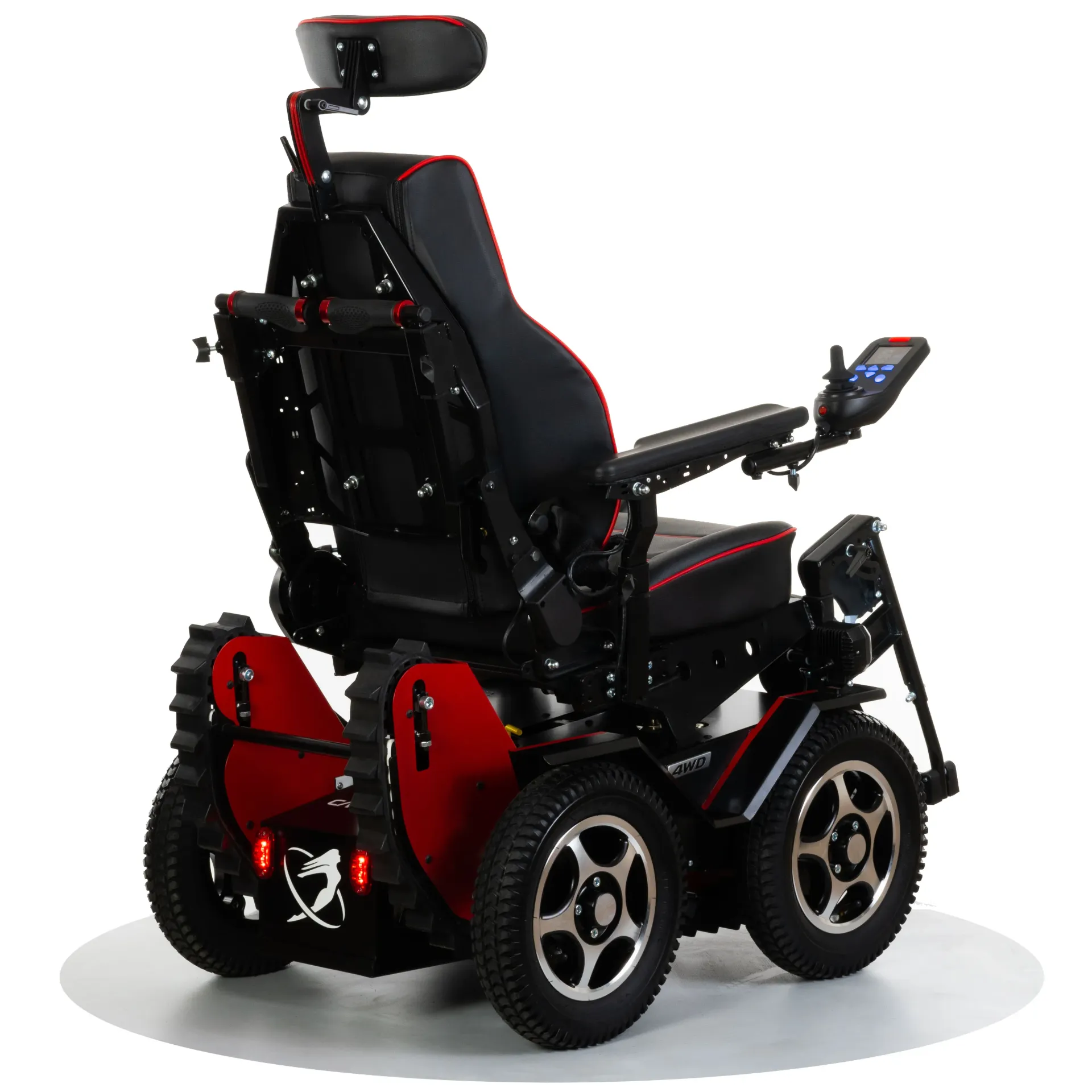

Stair-Climbing All-Terrain Wheelchair – Caterwil GTS 4WD

Caterwil GTS 4WD - All-wheel drive stair-climbing electric wheelchair with caterpillars.

The Caterwil GTS 4WD is your reliable partner for active outings! Thanks to its well-engineered design and all-terrain capabilities, this wheelchair easily handles any obstacle, whether it’s stairs or bumpy roads. A spacious seat and adjustable backrest ensure maximum comfort, while the stylish design makes every outing vibrant and memorable.The Caterwil GTS 4WD is the all-wheel-drive version of the Caterwil stair-climbing wheelchair. It features four drive wheels and a tracked drive system for ascending stairs. All-wheel drive enables zero-turn maneuvering in confined spaces.The wheelchair boasts exceptional off-road capability and maneuverability. Another advantage of this model is its compact size: the unit is 65 cm wide and just 92 cm long (105 cm with footrests). The total weight of this stair-climbing, all-terrain wheelchair is only 98 kg. The GTS 4WD comes standard with a controller featuring an LCD display

Features:

- Four-wheel drive with 4 large all-terrain wheels

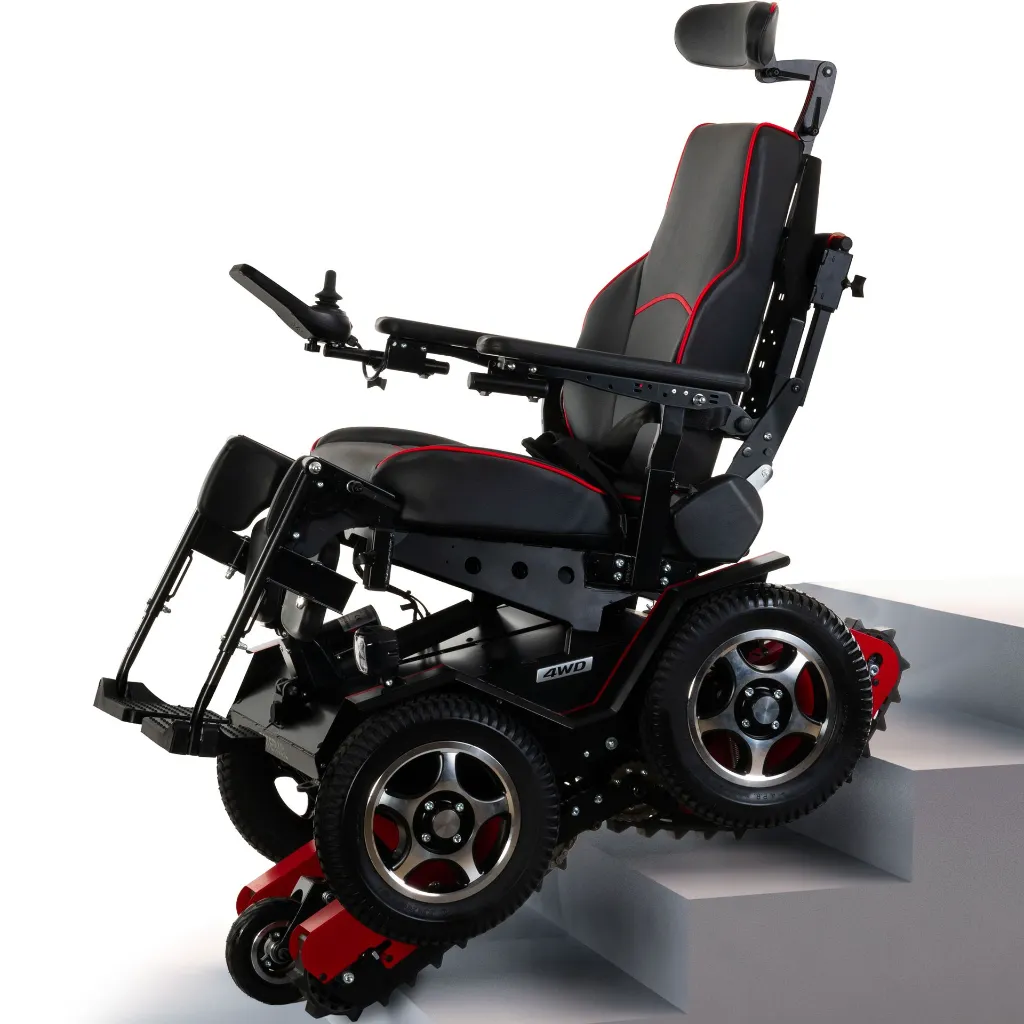

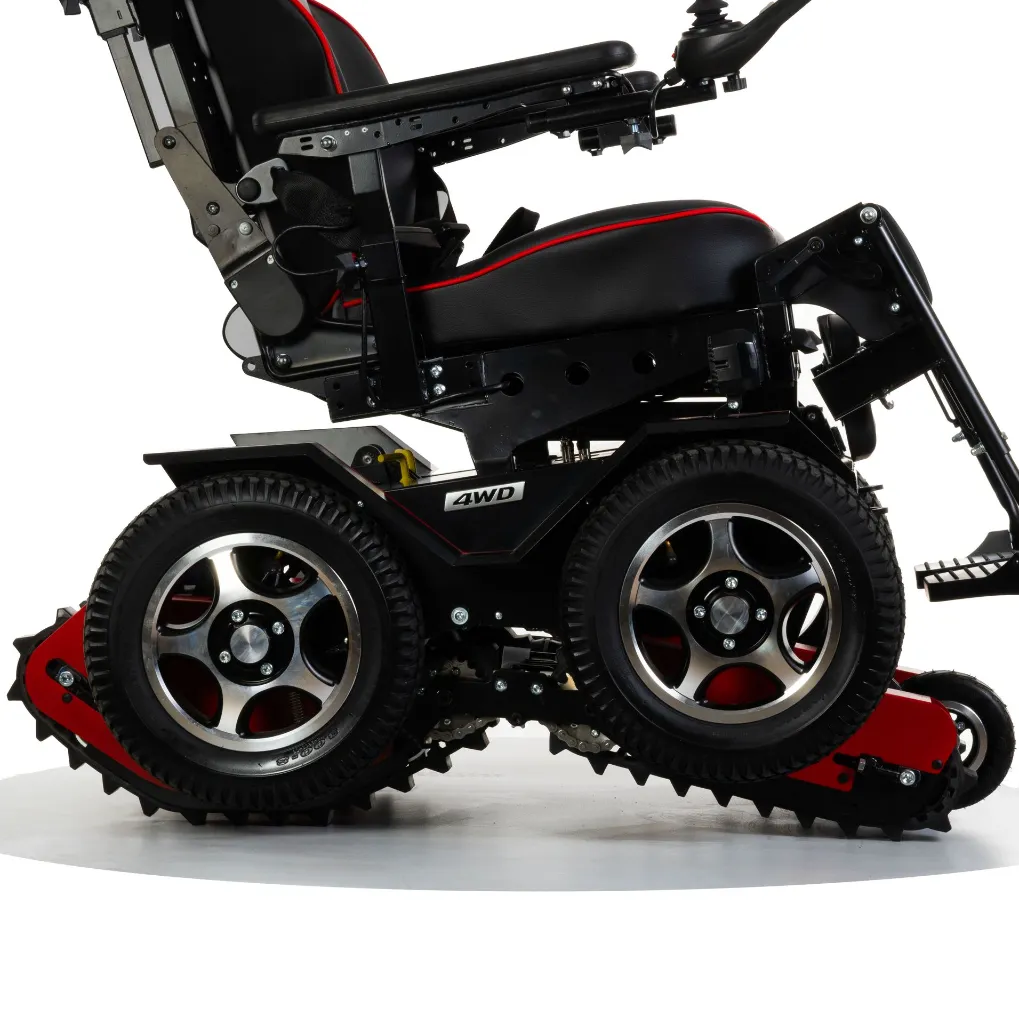

- Crawler platform for climbing ladders and other obstacles

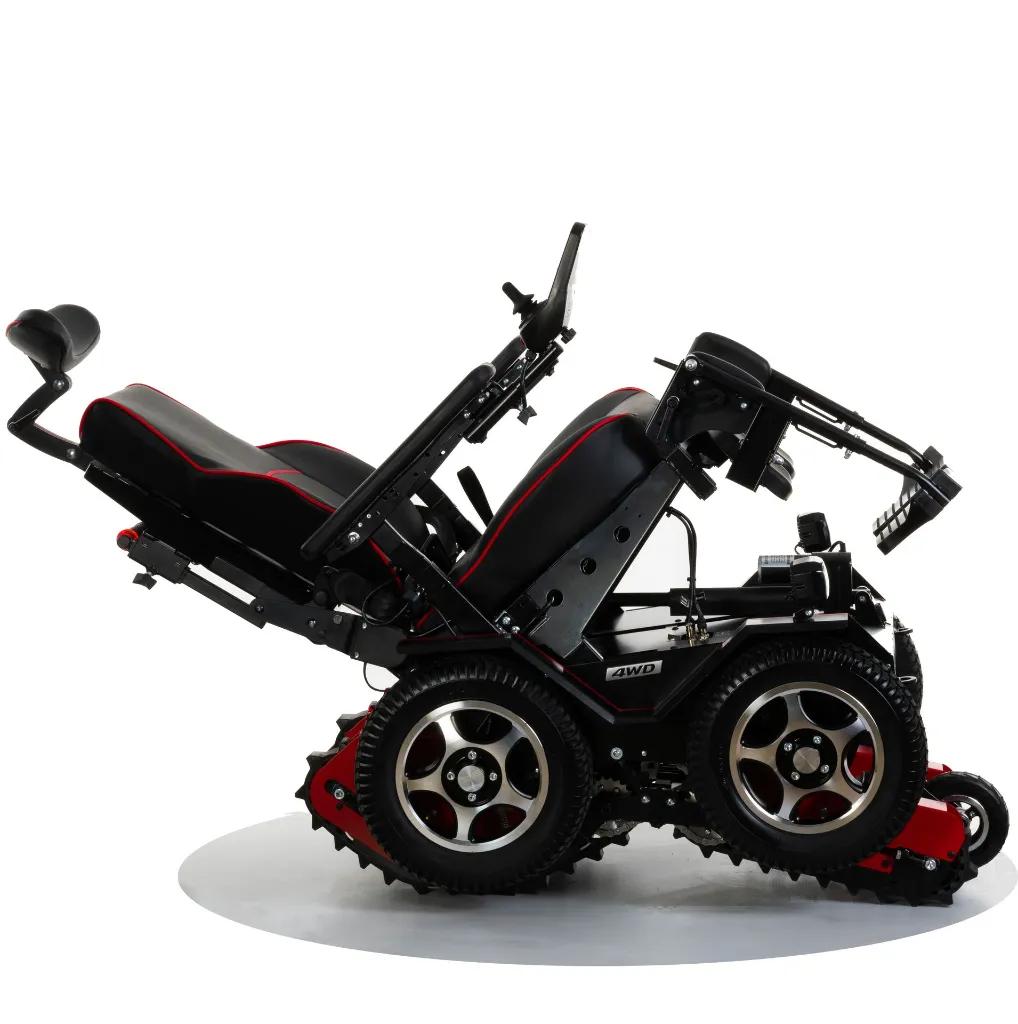

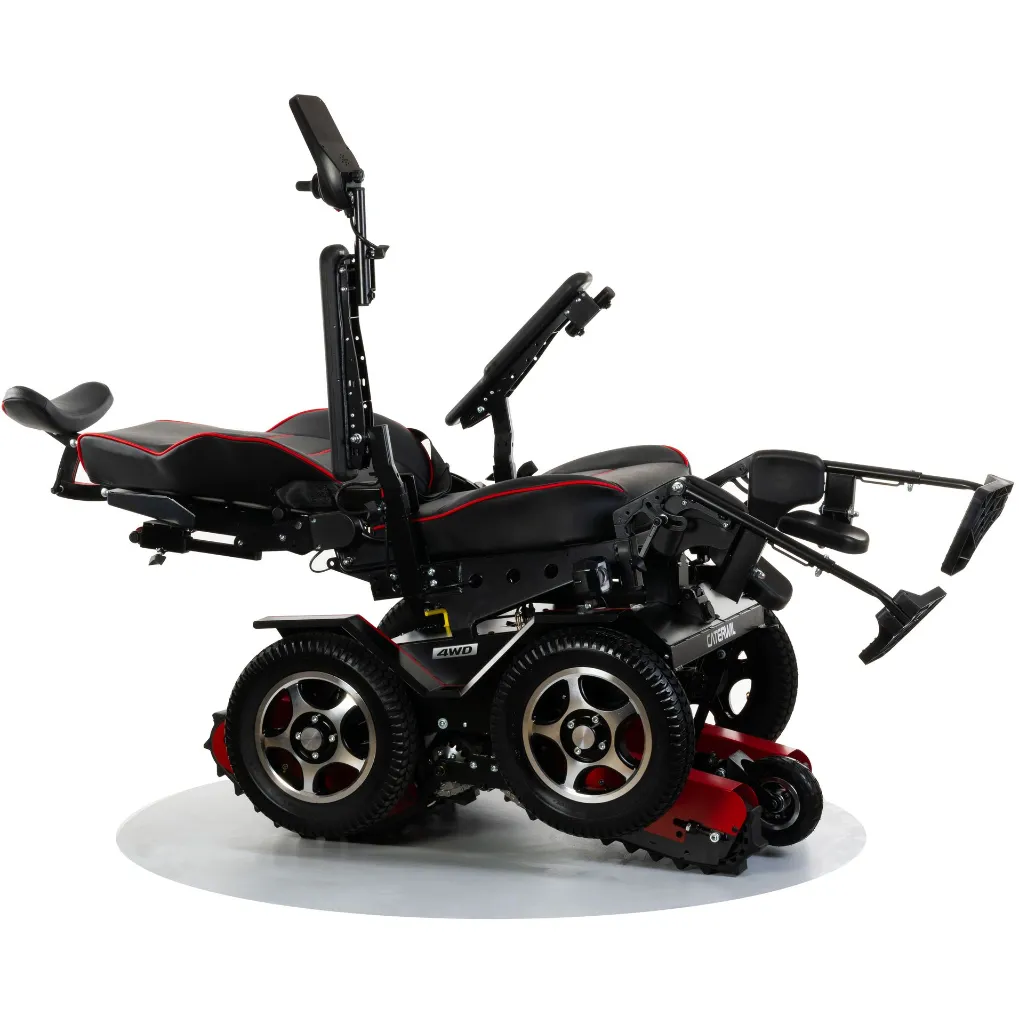

- Adjusting the angle of the chair in manual and automatic mode

- A remote control with a color LCD display with a large number of functions

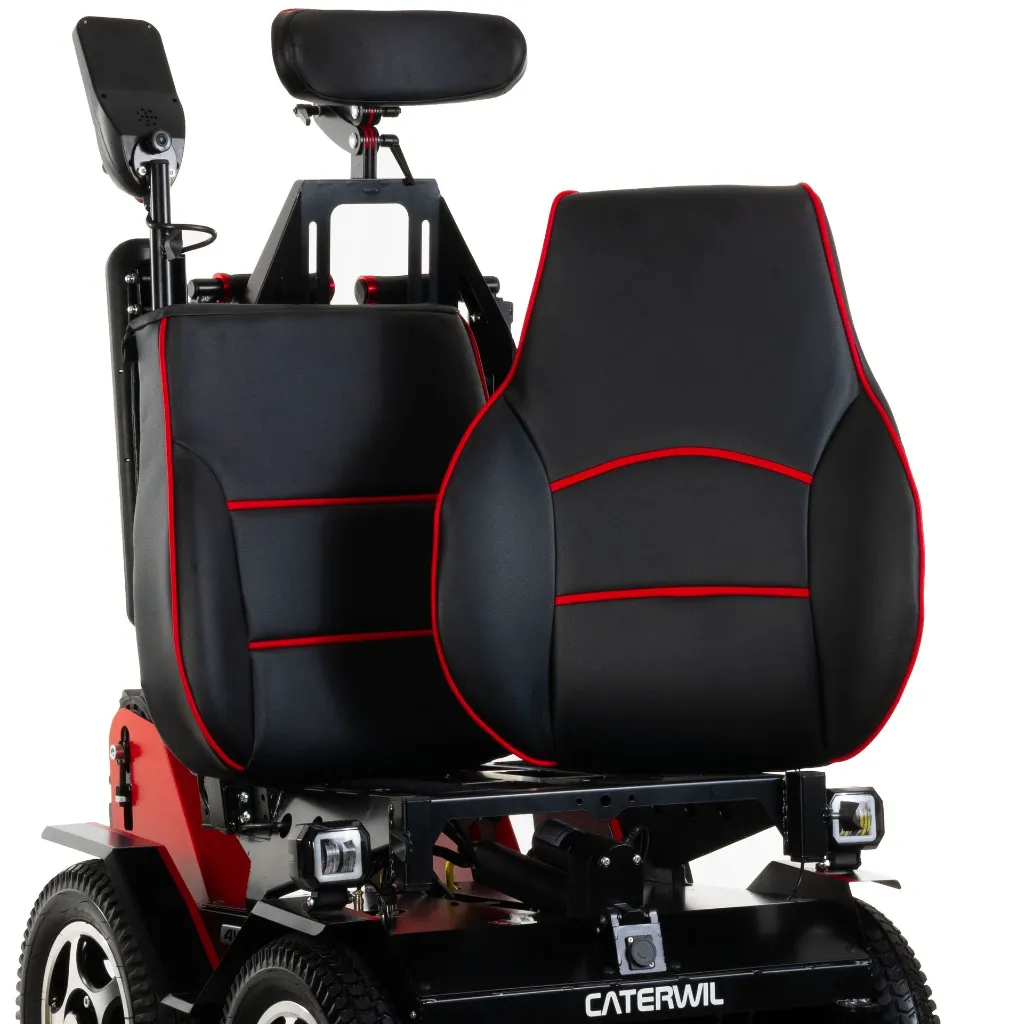

- Removable seat and backrest cushions of Comfort type

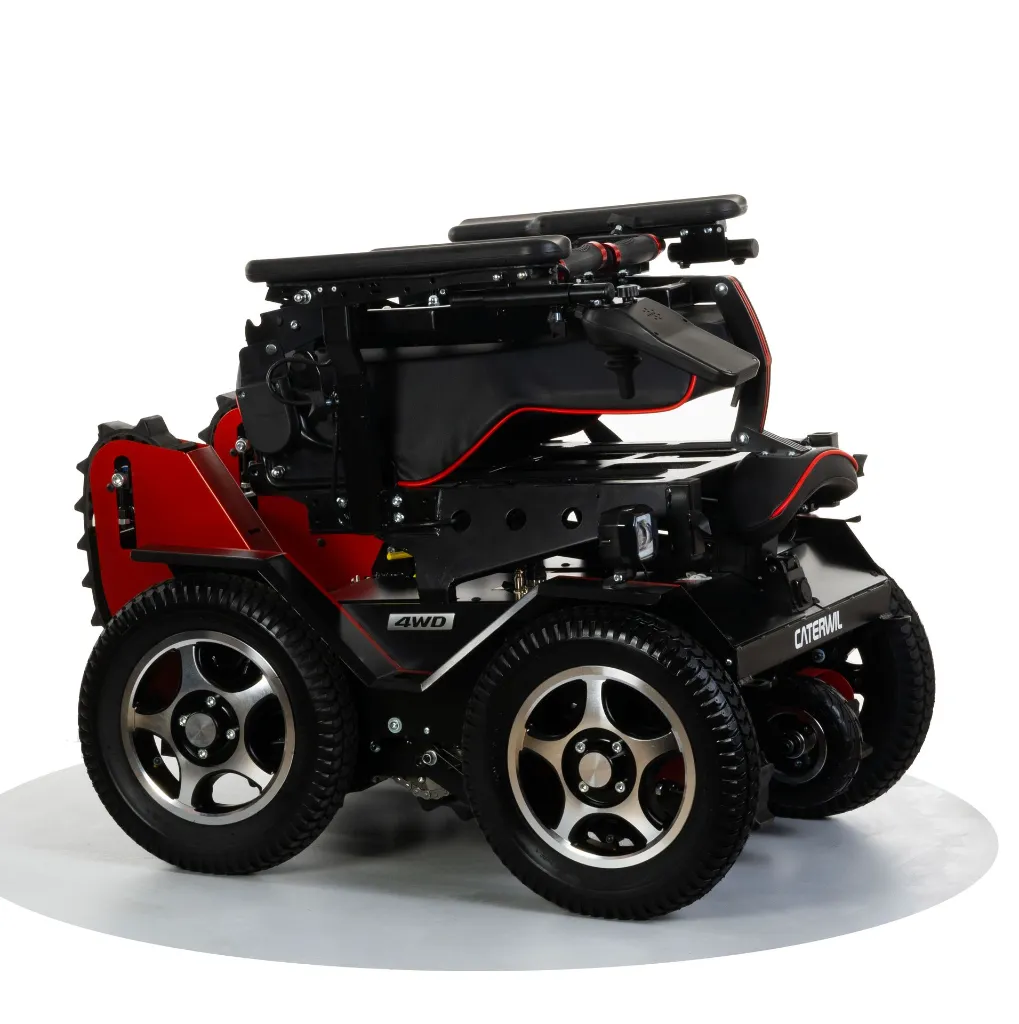

-Folding backrest for transportation in the trunk of the car

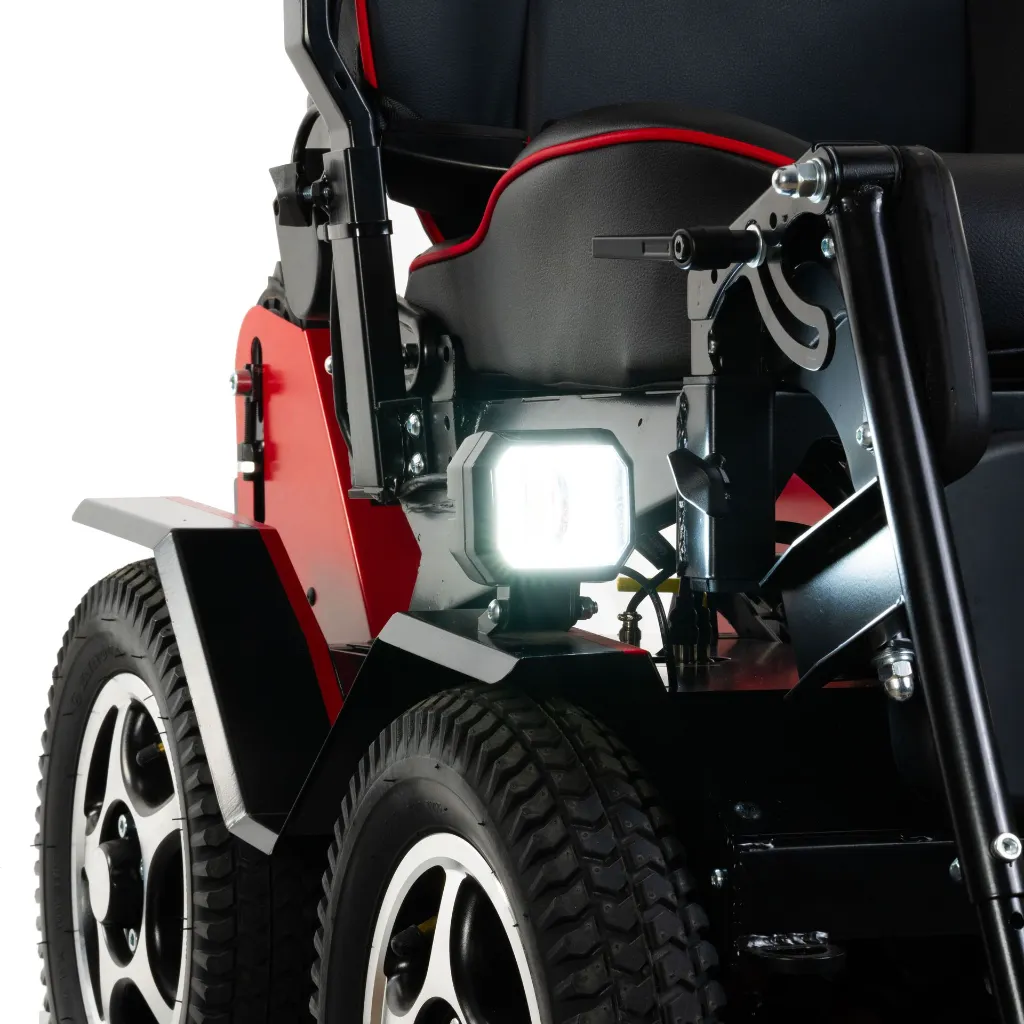

-Powerful LED headlights with low beam and high beam

-Headrest with three-axis adjustment of the maximum correct position

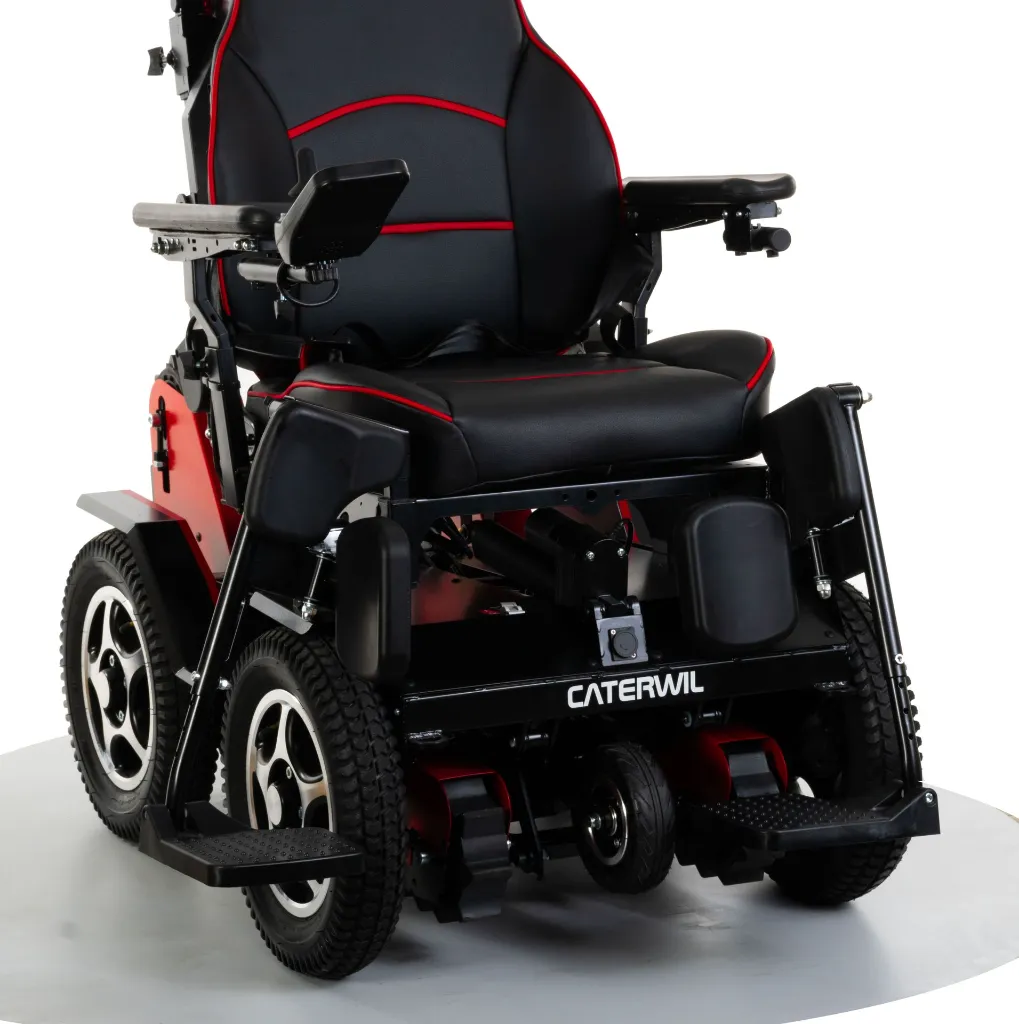

-Footrests with adjustable length and angle of inclination with side and shin stops

Main specification:

-        Lights - front and back lights

Full list of specifications:

Width: 65 cm

Length without footrests: 92 cm

Length with footrests: 105-130 cm (depends on the footrest extension)

Floor-to-seat height: 57 cm

 Total height when folded: 68 cm

Seat width: 45 cm (adjustable from 28 to 43 cm with pelvic supports)

Seat depth: 38, 43, 52 cm (adjustable)

Backrest height: 53-63 cm (adjustable)

Armrest height: 16-29 cm (adjustable)

Wheelchair weight (with batteries): 98 kg

Load capacity: 100 kg

Drive wheels: 355 mm x 4 pcs.

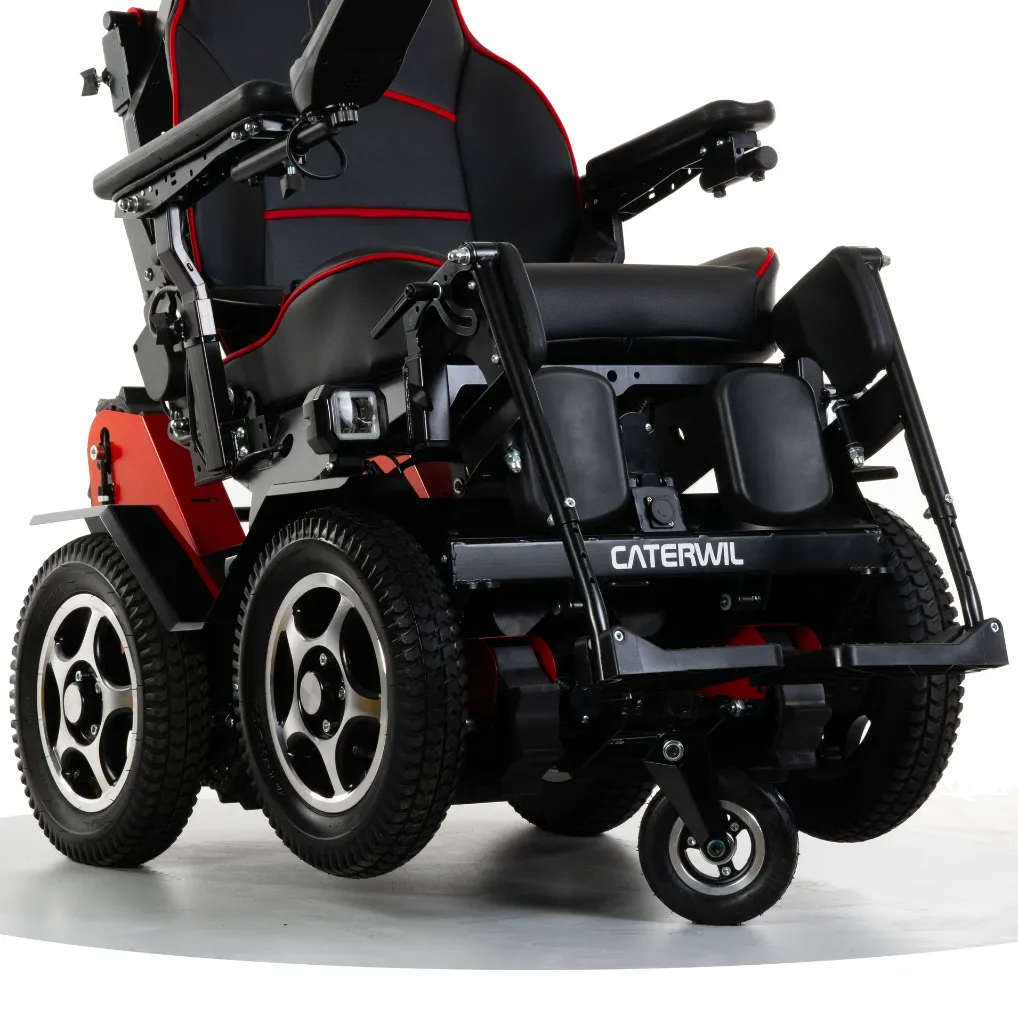

Pneumatic vibration-damping black tires Additional wheel: 160 mm, foam-filled

Maximum speed on wheels: 7 km/h

Maximum speed on tracks: 0.8 km/h

Range per charge: up to 30 km (up to 65 km with a high-capacity battery)

Maximum staircase incline angle: 35 degrees

Maximum step height: 200 mm

Operating temperature: -15 to +40 degrees Celsius

Battery capacity: 51 Ah Lithium battery

Motor supply voltage: 24 V

Charger input voltage: 220 V

Charging current: 5 A

 Lighting: Front and rear lights

Additional reliability:

●       Protective covers for tracks

●       Track anti-slip device

●       Reinforced chain drive

●       Sealed electronics unit

●       Ball bearings in track pulleys
