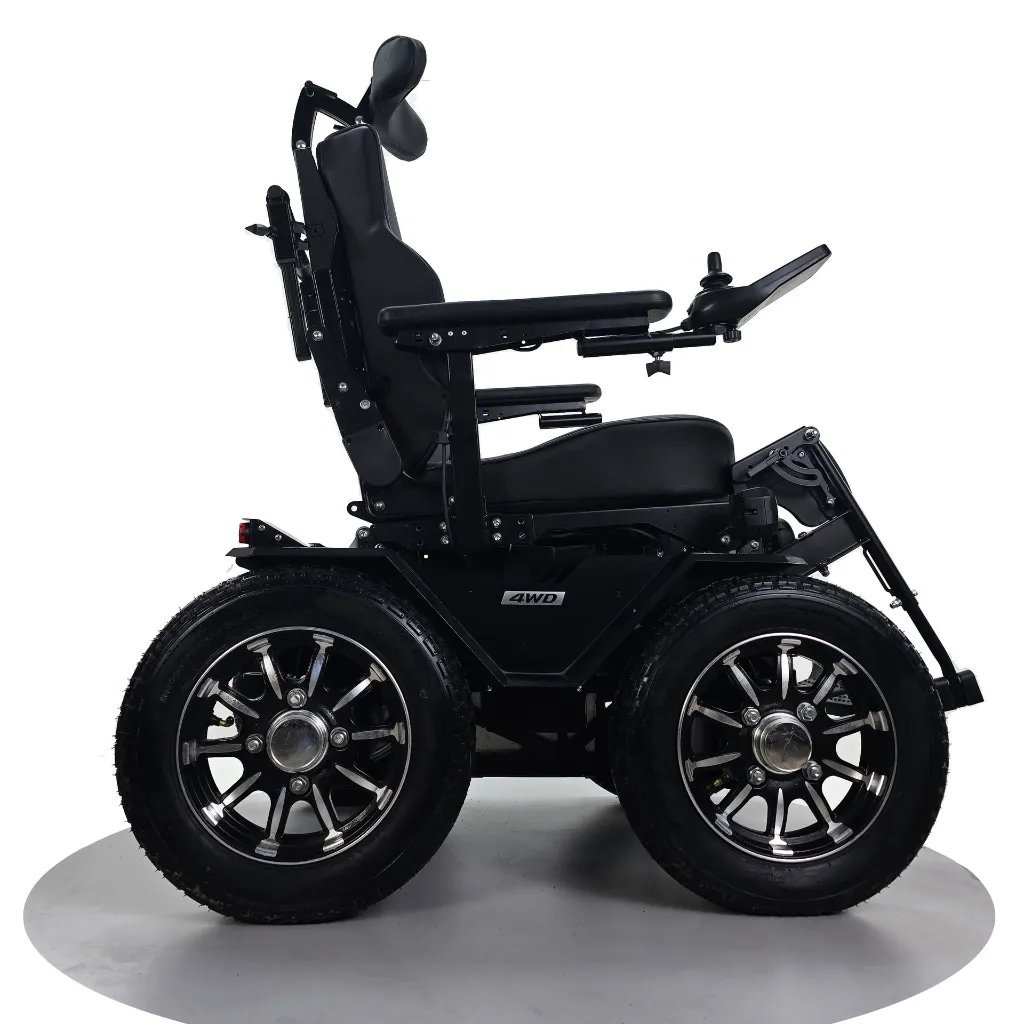

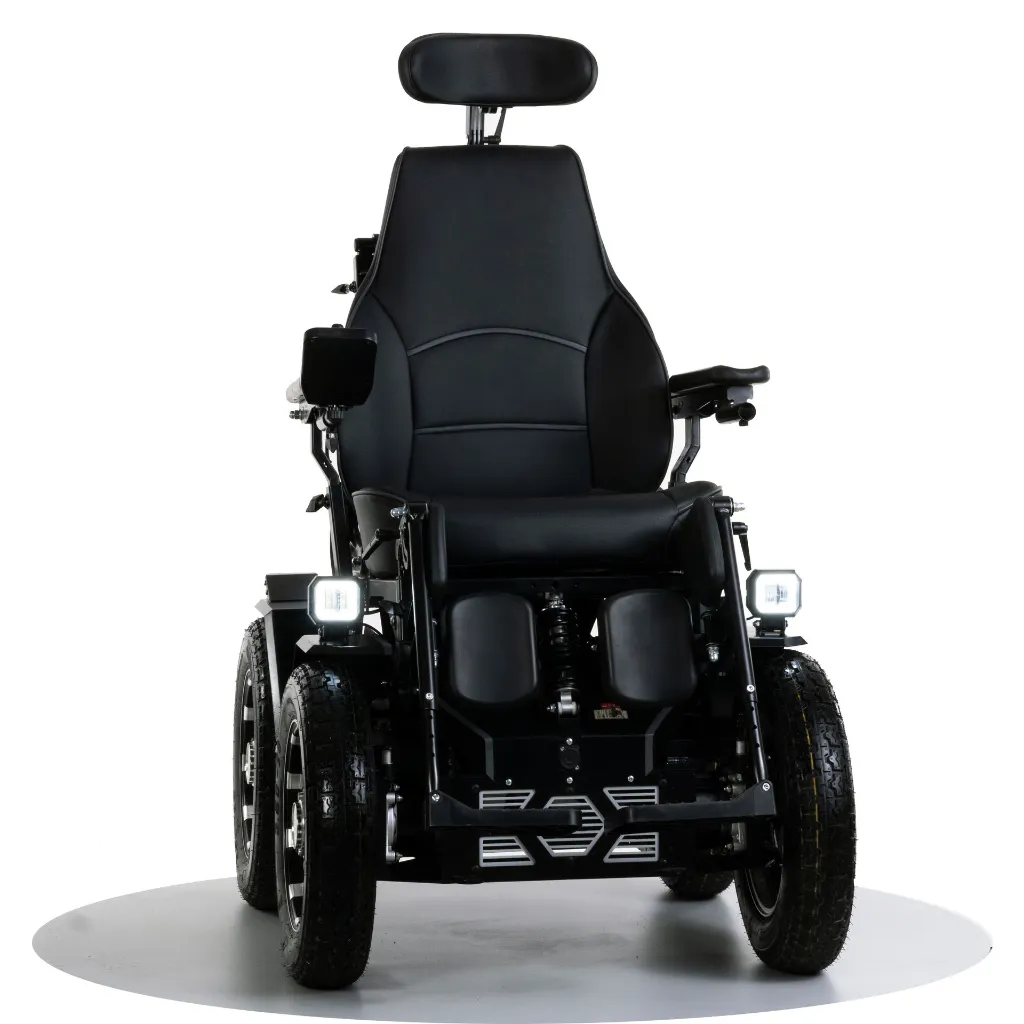

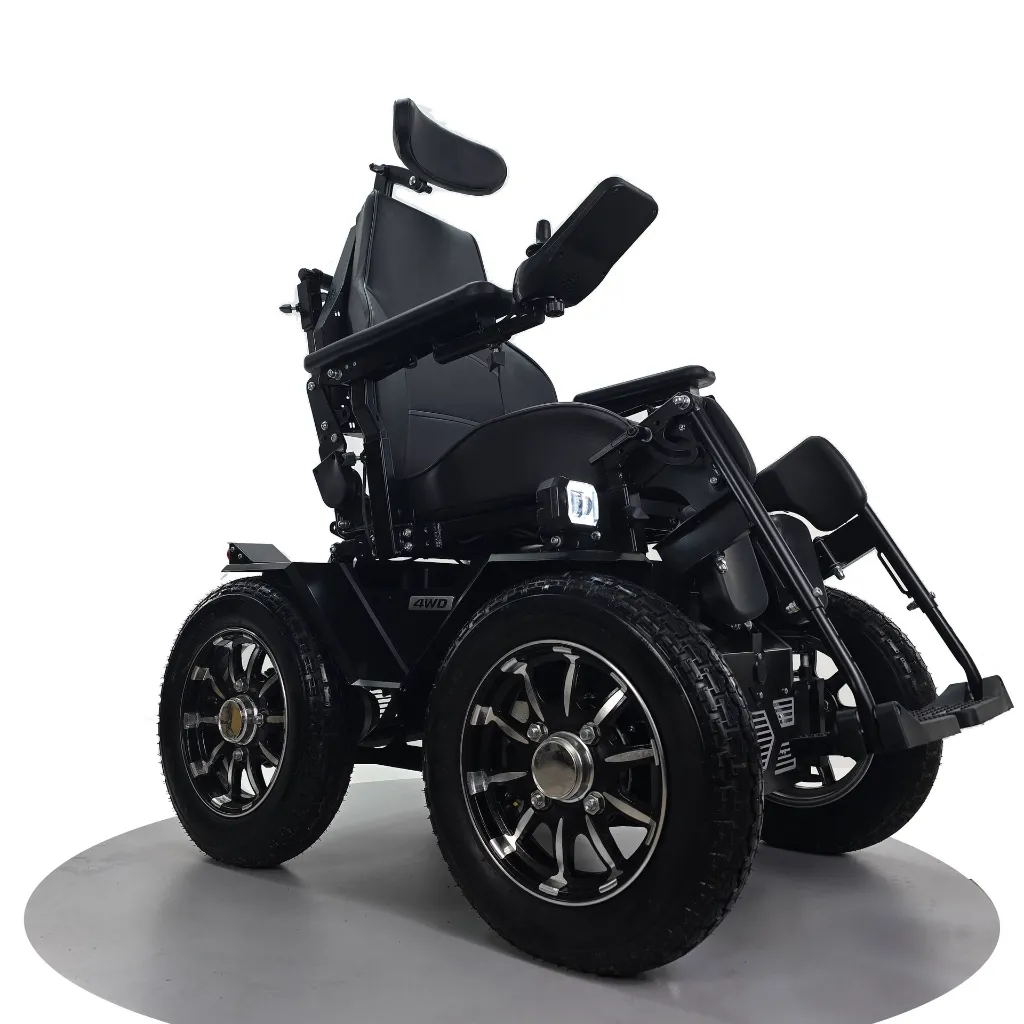

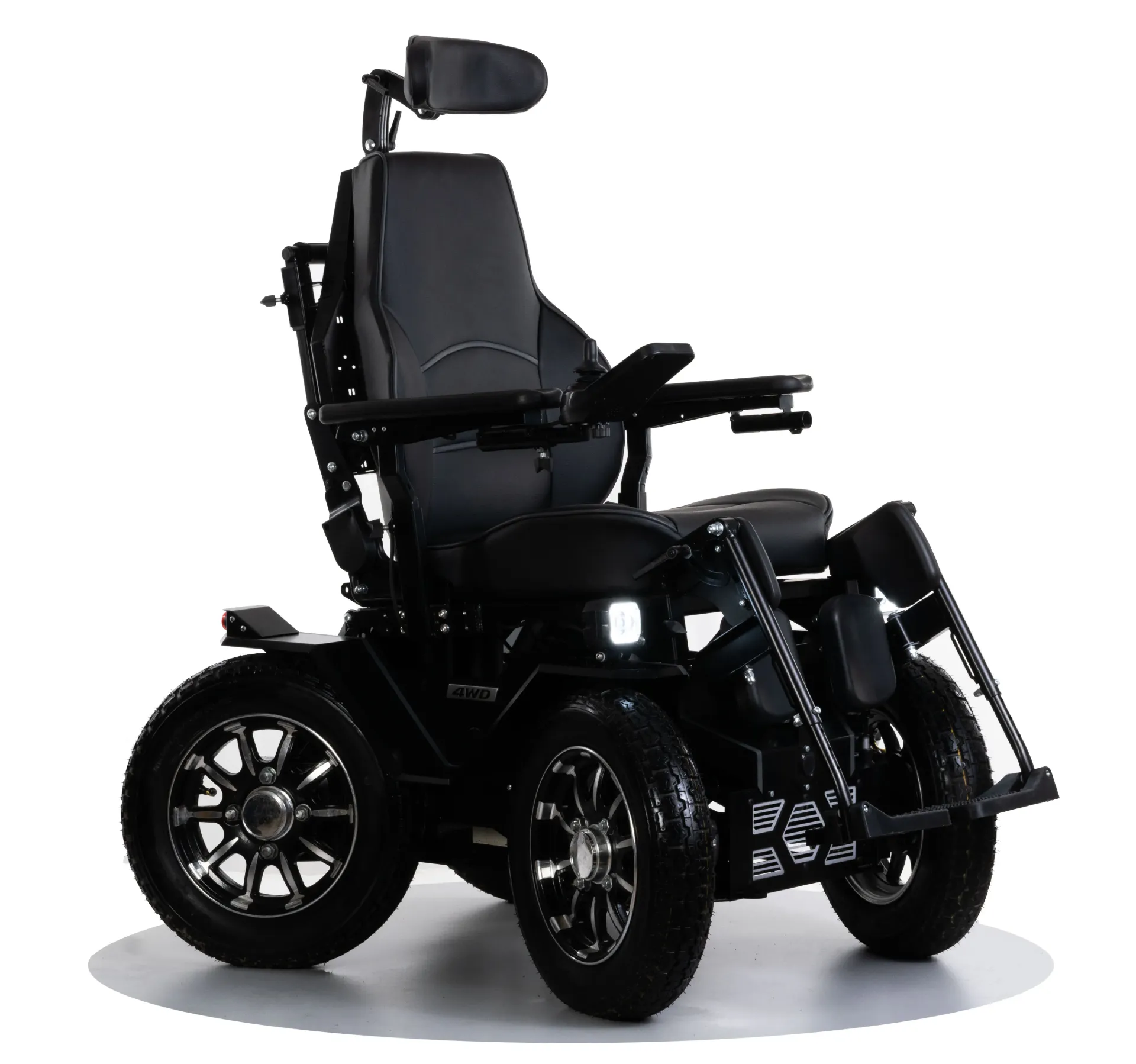

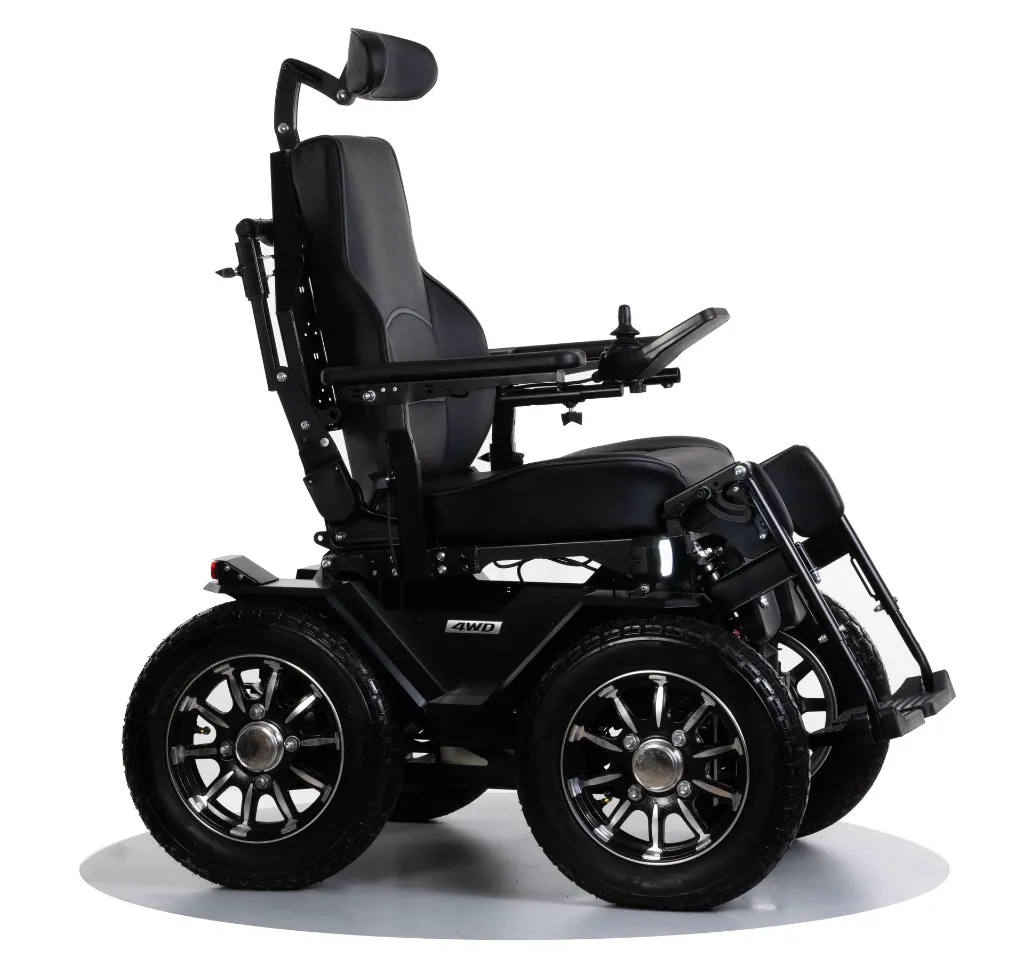

Caterwil Ultra 4WD PRO - all-wheel drive
electric wheelchair with crab turns and high ground clearance.
The Caterwil Ultra 4WD PRO is a new,
powerful electric wheelchair for extreme mobility. All-wheel drive, combined
with powerful motors and car-like wheels, overcomes any obstacle, while the
crab steering system ensures exceptional maneuverability. A wide range of
adjustments allows you to customize the wheelchair to your needs. This model is
designed for people with spinal injuries, cerebral palsy, musculoskeletal
disorders, as well as for stroke rehabilitation and for the elderly.The Caterwil 4WD wheelchair features four
350W electric motors per wheel. Large-diameter (425mm) tubeless tires with a
high and wide (90mm) profile, combined with all-wheel drive, ensure
maneuverability on any surface, thanks in part to the high ground clearance
(130mm). This allows the vehicle to confidently navigate loose snow, sand, mud,
gravel, and other off-road conditions.
Features:
- Independent
motors on each wheel provide phenomenal cross-country ability
- Progressive
shock absorber with very energy-intensive seat suspension
- Large,
wide tires with the ability to run at reduced pressure
-Turning
in one place in Crab mode
- Compact
for transportation in the trunk of a crossover or station wagon
-Removable,
stylish and comfortable orthopedic seat cushion
-Removable
seat and backrest cushions of Comfort type
- Powerful
LED headlights with low beam and high beam
- Remote
control with a color LCD display with a large number of functions
- Headrest
with three-axis adjustment of the maximum correct position
Main specifications:
- Speed max - 12 km/h
- Load capacity - 125 kg
- Weight - 115 kg (including battery)
- Width - 70 cm
- Turning radius - 100 cm
- Battery - 51 A/h
- Drive system - 4WD with gyro balance
- Wheels - 425 mm
- Clearance - 130 mm
- Lights - front and back lights
Full list of specifications:
Width: 70 cm
Length without footrests: 100 cm
Length with footrests: 111-136 cm
(depends on the footrest extension)
Total height when folded: 76 cm
Seat width: 45 cm (adjustable from 28 to
43 cm with pelvic supports)
Seat depth: 38, 43, 52 cm (adjustable)
Seat height from floor: 60 cm
Backrest height: 53-63 cm (adjustable)
Armrest height: 16-29 cm (adjustable)
Wheelchair weight (with batteries): 115
kg
Load capacity: 125 kg
Drive wheels: 425 mm x 4 pcs. Tubeless
vibration-damping black tires
Ground clearance: 130 mm
Curb climbing height: 18 cm
Maximum speed on wheels: 12 km/h
Range per charge: up to 36 km (up to 90
km with a 125 Ah battery)
Operating temperature: -15 to +40 degrees
Celsius Battery capacity: 51 Ah. Lithium
battery
Motor supply voltage: 24 V
Charger input voltage: 220 V
Charging current: 8 A
Lighting: Front and rear LED headlights
